ML610M Thiea 2/3英寸可變焦4K鏡頭
超高分辨率可變焦鏡頭
6-10毫米焦距范圍
真4K分辨率，1200萬像素
紅外校正，日夜兩用
抗20-200Hz、10G/軸振動
適用于2/3英寸傳感器
緊湊設計，適合狹小空間
詳情

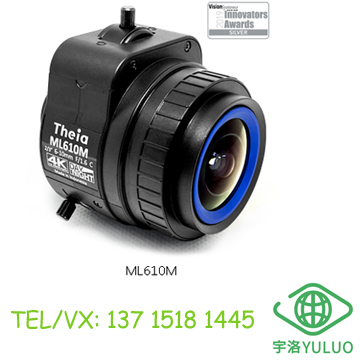

ML610M Thiea 2/3英寸可變焦4K鏡頭
超高分辨率可變焦鏡頭
6-10毫米焦距范圍
真4K分辨率，1200萬像素
紅外校正，日夜兩用
抗20-200Hz、10G/軸振動
適用于2/3英寸傳感器
緊湊設計，適合狹小空間
概述
已選型號：ML610M
光圈類型：手動光圈
焦距：6-10mm 變焦
光圈值：F/1.7 至關閉
分辨率：真 4K 分辨率，1200 萬像素
紅外校正：440nm - 950nm
接口類型：C 接口
圖像傳感器尺寸：1/2.3 英寸、1/1.7 英寸及最大 2/3 英寸
Overview
Selected:
ML610M
Iris type Manual iris
Focal length 6-10mm varifocal
F/# F/1.7 to closed
Resolution true 4k resolution, 12 MP
IR correction 440 nm - 950 nm
Mount type C-mount
Image sensor size 1/2.3", 1/1.7", and up to 2/3"
Accessories
FMT-3555
Filter Mount Accessory
This filter mount can be added to the 410 series lenses to allow an external filter (such as band-pass or polarizing filter) to be added to the system. The filter mount works with lenses with 35mm front barrel diameter and is held in place with 3 sharp point set screws. It will accept filters with M55x0.75 threads. Filters are not provided by Theia Technologies.
Part FMT-3555: High performance aluminum filter mount for use with lenses:
SL410, TL410, ML410
ML610
SL1250, TL1250 *
MY23F
*special care required when installing filters to prevent damage to the motors
View FMT-3555 CAD Data
KIT-9010
Part KIT-9010 Thumbscrew replacement kit for:
SL410M, SL410A, SL410P
ML410M
ML610M
The kit includes 2x M2x5 set screws, 2x M2x7 set screws, 2x M2x5 button head screw and Allen keys.
Lenses
theia-ML610M-Transparent-1000x1000
Selected: ML610M
6-10mm, 4k 12mpx, Day/Night, manual iris, 2/3" format C mount lens
